Payload
13.5 gal Tank
Pump System
5.81 gal/min Volume
Coverage
About 46.96 acres/hour Efficiency
Blade
New Folding Quadrotor Design
Spreading System
Vertical Precision Broadcast
Smart Agricultrure
Smart Agriculture Cloud Platform

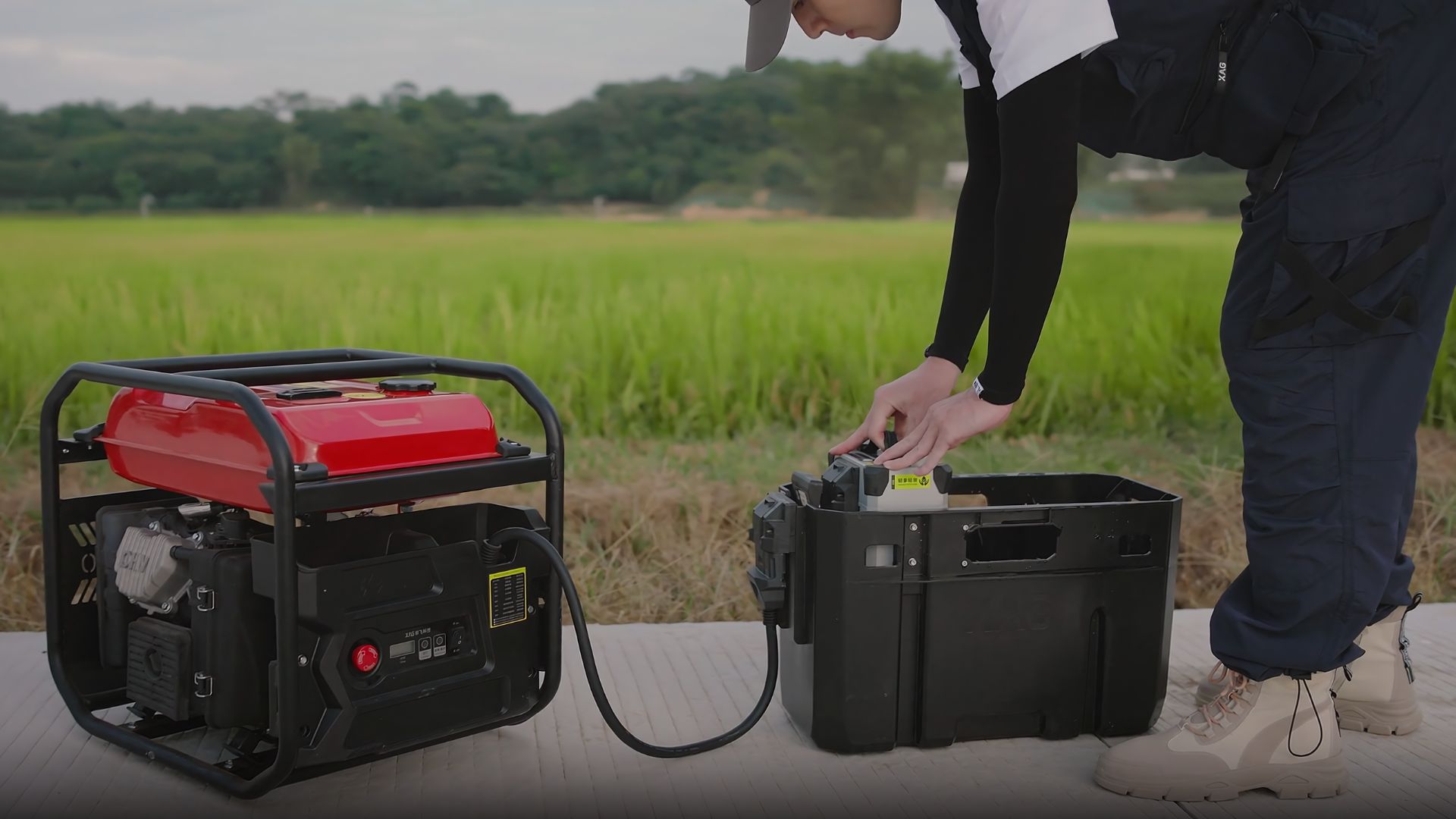

Efficient Power Systems
High efficiency one-stop Water-cooled power solutions.
- Water-cooled charging technology
- Charge a battery Quickly
- Operate in high temperature weather
Unified Pump System
Cutting-edge technology
Utilizing the powerful synergy of a peristaltic pump and centrifugal nozzle, the XAG P100 employs cutting-edge technology to deliver exceptional spraying performance. As the peristaltic pump swiftly squeezes the pump tube, liquid medicine is efficiently drawn from the medicine box. This liquid is then propelled through the centrifugal nozzle, which spins at high speeds, dispersing the liquid into fine, uniform droplets.
Precision Spreading
Uniform Spreading Pattern
Precision spreading in the XAG P100 Pro drone is achieved through vertical precision spreading with adjustable width, a feature designed to ensure accurate and efficient distribution of particles for agricultural purposes. The drone employs unique centrifugal spreading discs that facilitate rapid vertical downward acceleration of particles, enhancing their penetration into the target area while mitigating the effects of wind resistance.
Residual Detection Technology
Precision Detection
The XAG P100 Pro drone efficacy of precision in spraying hinges on the incorporation of accurate residual detection technology, notably featuring an upgraded non-contact liquid level sensor. This sensor plays a pivotal role in ensuring the real-time, precision detection of leftover chemical liquid within the drone's tank.

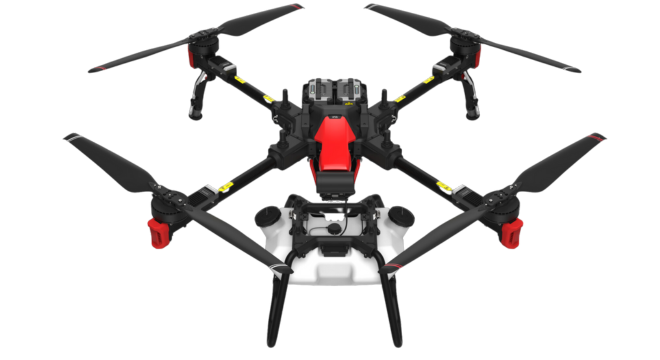

Quadrotor Design
Designed to streamline deployment
The new folding quadrotor design featured in the XAG P100 Pro drone offers a range of practical advantages. Its collapsible structure enhances portability, allowing for easy transportation and storage, particularly beneficial for field operations where mobility is crucial.
4D Imaging Radar
Fast Switching and Efficient Spreading
Enhanced detection performance, doubled distance coverage, heightened responsiveness, and expanded field of view characterize this system. Even when flying at maximum speed, it adeptly navigates obstacles from all angles, ensuring both safety and efficiency. Easy obstacle avoidance prioritizes safety and efficiency across detection ranges from 1.5 to 80 meters, with a maximum relative speed of obstacle avoidance of ≤ 13.8 m/s.
XAG P100 PRO Specifications
Aircraft Specs
| Motor Model | A50 |
|---|---|
| Rated Power (Single Motor) | 4100 watts |
| Maximum Pulling Force (Single Motor) | 52 kg |
| ESC Model | VC13230 |
|---|---|
| Maximum Output Current | 230 A |
| Continuous Output Current | 110 A |
| Propeller Model | 5515 Propeller |
|---|---|
| Diameter × Pitch | 55 inches × 15 inches |
| Dimensions (Paddles Extended) | 2927 mm × 2868 mm × 323 mm |
| Dimensions (Paddles Folded, Arms Folded) | 893 mm × 1095 mm × 345 mm |
| Symmetrical Motor Wheelbase | 2094 mm |
| Protection Class | IPX6K |
| Flight Platform Mass (Including Battery) | 46 kg |
| Arm Tube Material | Glass and carbon fiber composites |
| Rated Load | 50 kg |
| Sustained High Precision Navigation Time with RTK Data Delay | Limit RTK data delay within 600 seconds |
|---|---|
| Maximum Flight Speed | 13.8 m/s |
| Hover Accuracy (Good GNSS Signal) | RTK enabled: Horizontal ±10cm, Vertical ±10cm RTK not enabled: Horizontal ±0.6 m, Vertical ±0.3 m |
| Maximum Takeoff Altitude | 2000 meters (above 2000 meters will affect flight efficiency) |
| Recommended Operating Ambient Temperature | 0~40 degrees Celsius |
PSL Camera Specs
| Video Resolution | 1920x1080 |
|---|---|
| Frame Rate | 30 frames per second |
| Image Sensor | 1/2.9-inch CMOS-RGB image sensor |
| Supply Voltage (Down View FPV) | 5 volts |
|---|---|
| Supply Voltage (Forward Viewing FPV) | 48 volts |
| Video Encoding Format | H.264 |
|---|
| Focal Length | 3.2 mm |
|---|
XAG Ruijet P3 - Core Spraying System
| Core Spray System Size | 737 mm × 734 mm × 497 mm |
|---|
| Rated Capacity of Medicine Box | 50 liters (50 kg) |
|---|
| Quantity | 2 |
|---|---|
| Disk Speed | 1000~16000 rpm |
| Atomized Particle Size | 60~400 microns (subject to spray flow, environment, etc.) |
| Fan | 5~10 meters (depending on flight speed, flight altitude, usage per mu, environment, etc.) |
XAG B13970 Smart Superchargeable Battery Specs
| Model | M1PPA13970A |
|---|---|
| Standard Voltage | 48.75 V |
| Capacity | 20 Ah |
| Protection class | Rd |
| Discharge rate | 48.75V/140A |
| Maximum Charging Current | 100 A |
| Charging Ambient Temperature | 10~45 degrees Celsius |
