Payload
13.2gal (optional 15.8gal) liquid payload 132lb granular payload (21.1gal)
High Flow Rate
Spraying (2 nozzles) 4.8gpm Spraying (4 nozzles) 7.4gpm
360° Obstacle Sensing
Multidirectional Obstacle Avoidance
Blade
New Folding propellers for stability
GEO (Geospatial Environment Online) System
Real-time information on flight safety and restriction updates and prevents UAVs from flying in restricted airspace.
Smart RTH
Enabling control of the altitude of the aircraft to avoid collisions when returning to the home point.
Efficient Power Systems
- Operational Efficiency: 56–70 acres per flight hour, depending on conditions.
- Maximum Speed: Up to 45 ft/s for rapid coverage
- Durable Components: Large motor and high-strength blades ensure long-lasting performance.
- Powerful Flight: Designed for maximum thrust and stability, even under heavy payloads
Automated Operation
Seamless multi-field operations
The Talos T60X takes efficiency to the next level with its fully automated operation features. With just one click, the drone lifts off and begins precise crop spraying, including single-side spraying for improved coverage and reduced overlap. Its intelligent system enables seamless multi-field operations, allowing you to transition from one field to the next without interruption.
RTK Antenna
GNSS+RTK navigation system
The Talos T60X is equipped with a GNSS+RTK dual-redundancy navigation system that delivers centimeter-level positioning accuracy. Its built-in dual RTK antennas provide reliable, interference-resistant performance by minimizing the effects of magnetic disturbances, ensuring stable flight control even in challenging environments.
Automatic RTH
Smart return, every time
The Talos T60X includes an intelligent Return-to-Home (RTH) function designed to ensure flight safety and reliability. If the aircraft exceeds its maximum transmission range, loses connection with the remote controller, or drops below a safe battery threshold, the RTH feature automatically activates and guides the drone back to its recorded home point.
Obstacle Avoidance
Dual sensing technologies
The Talos T60X is equipped with an advanced omnidirectional obstacle avoidance system and intelligent terrain follow modes that adapt to diverse operating environments. When enabled, the aircraft detects obstacles in real time and either bypasses them automatically or prompts the pilot for corrective action, depending on conditions.
ESC Module System
Maximized airflow
The Telos T60 X ESC Module is engineered with a large, open-frame design that maximizes airflow and heat dissipation. Built to handle high continuous and peak current demands, the module incorporates robust cooling capacity by allowing more fans and natural ventilation to reduce thermal buildup during sustained operation.

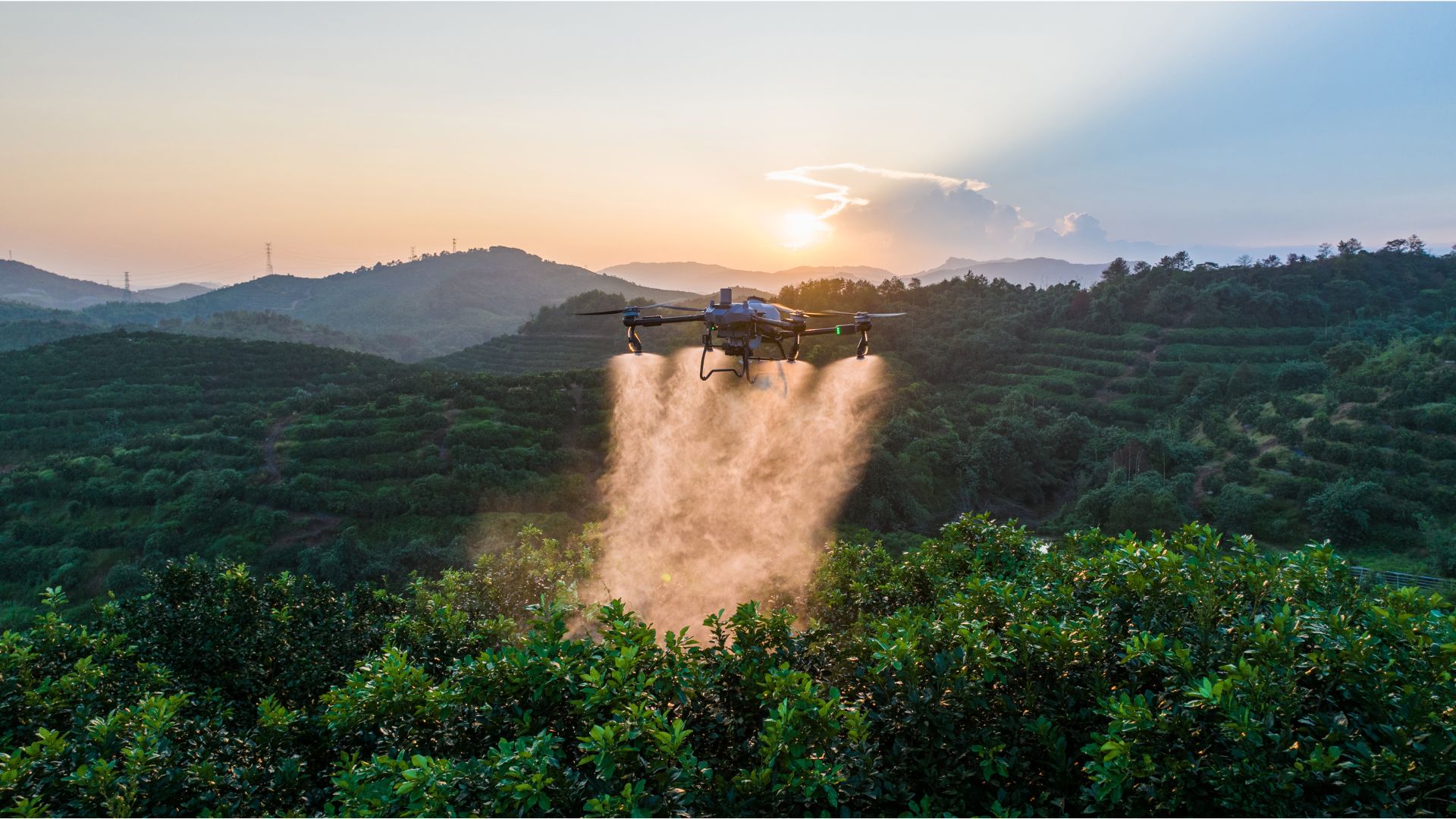

Orchard Aerial Application
3D Flight System Routes
The Talos T60X enables precise orchard spraying with automatic 3D flight routes, adjustable waypoint heights, and fine droplet sizes (20–320 μm) for optimal coverage and penetration.
TALOS T60X Specifications
Aircraft Specs
| Aircraft Weight | 101 lbs (without battery) 136 lbs (with battery) |
|---|
| Max Takeoff Weight (Spraying) |
247 lbs [standard: 2 sprayers & 13.2-gallon tank, at sea level] 272 lbs [optional tree kit with 2 sprinklers, at sea level] |
|---|---|
| Max Takeoff Weight (Spreading) | 275 lbs [at sea level] |
| Max Diagonal Wheelbase | 7.4 ft |
|---|---|
| Dimensions (Arms & Propellers Unfolded) | 9.4 × 10.8 × 3.0 ft |
| Dimensions (Arms Unfolded, Propellers Folded) | 5.4 × 6.7 × 3.0 ft |
| Dimensions (Arms & Propellers Folded) | 3.6 × 3.0 × 3.0 ft |
| Hovering Accuracy (Strong GNSS) |
RTK enabled: Horizontal: 0.4 in + 0.04 in per mile Vertical: 0.6 in + 0.04 in per mile (Accuracy decreases by 0.04 in for every mile from the base station) RTK disabled: Horizontal: ±24 in, Vertical: ±12 in |
|---|---|
| Max Configurable Flight Altitude | 6562 ft (1.24 miles) |
| Max Wind Resistance | 13 mph |
Safety System Specs
| Radar Type | Millimeter-wave Rotating |
|---|---|
| Transmit Power | < 20 dBm (NCC/MIC/KC/CE/FCC) |
| Operating Temperature | 32 °F – 104 °F (0 °C – 40 °C) |
| Operating Environment | Adequate light, discernible surroundings, no dirt |
| Operating Frequency | 24.05 – 24.25 GHz (NCC/FCC/MIC/KC/CE) |
| Power Consumption |
Front radar: 23 W Rear radar: 18 W |
| Field of View (FOV) |
Front radar: 360° horizontal, ±45° vertical (cone) Rear radar: 360° vertical, ±45° horizontal Trinocular vision: 90° horizontal, 180° vertical |
| Measurement Range | 197 ft (60 m) |
| Effective Sensing Speed | 31 mph (≤ 13.8 m/s) |
| Effective Obstacle Avoidance Height | ≥ 5 ft (1.5 m) |
Dual Atomizing Spraying System Specs
| Spray Tank Material | Plastic (HDPE) |
|---|---|
| Spray Tank Volume | 13.2 gallons (50 L) |
| Operating Payload | 110 lbs (50 kg) |
| Sprinkler Quantity | 2 (standard equipped) |
|---|---|
| Nozzle Distance | 5.7 ft (1765 mm) [rear nozzles] |
| Droplet Size | 50 – 500 μm |
| Effective Spray Width | 13 – 36 ft (4 – 11 m) [at 10 ft height above crops] |
| Pump Type | Impeller pump (magnetic drive) |
|---|---|
| Pump Quantity | 2 |
| Max Flow Rate |
4.8 gal/min (18 L/min, 2 sprinklers) 7.4 gal/min (28 L/min, 4 sprinklers) |
Spreading System Specs
| Compatible Material Diameter | 0.02 – 0.39 in (0.5 – 10 mm) dry granules |
|---|---|
| Spread Tank Volume | 21 gallons (80 L) |
| Spreader Structure | Centrifugal spinner |
| Discharger Structure | Auger feeding |
| Maximum Discharge Capacity | 419 lbs/min (190 kg/min, compound fertilizer) |
| Spread Tank Internal Load | 132 lbs (60 kg) |
| Spread Width | 9.8 – 26 ft (3 – 8 m) |
Remote Controller Specs
| Screen | 7 in LCD touchscreen, 1920 × 1200 resolution, 1400 cd/m² high brightness |
|---|---|
| Storage Temperature Range |
Less than 1 month: -22 °F to 113 °F (-30 °C to 45 °C) 1–3 months: -22 °F to 95 °F (-30 °C to 35 °C) 6–12 months: -22 °F to 86 °F (-30 °C to 30 °C) |
| Charging Temperature | 41 °F to 104 °F (5 °C to 40 °C) |
| Internal Battery Runtime | 3 hours 48 minutes |
| External Battery Runtime | 3 hours 12 minutes |
| Charging Type | USB-C charger, max 65 W / 20 V (locally certified) |
| Charging Time | 2 hours for internal battery or internal + external battery (when powered off) Compatible with WB37 external batteries and WB37 charging hub |
Intelligent Power Supply Specs
| Dimensions | 15.7 × 10.5 × 4.7 in (400 × 266 × 120 mm) |
|---|---|
| Weight | 25.1 lbs (11.4 kg) |
| Input / Output (High Voltage) |
Input (Main): 220–240 VAC, 50/60 Hz, 24 A max Input (Auxiliary): 220–240 VAC, 50/60 Hz, 24 A max Output: 59.92 VDC max, 175 A max, 9000 W max |
| Input / Output (Low Voltage) |
Input (Main): 100–120 VAC, 50/60 Hz, 16 A max Input (Auxiliary): 100–120 VAC, 50/60 Hz, 16 A max Output: 59.92 VDC max, 60 A max, 3000 W max |
| Battery Charging Time | 9–12 minutes (from 15% to 95%) |
| Protection Functions | Over-voltage, over-charge, under-voltage, over-temperature |
| Charging Safety | AC wire protection, power wire protection, charge connector protection |
