Spraying System
High-Capacity Liquid Delivery
High Output
Fast, Efficient Coverage
Spreading System
Built for Large Jobs
Precision Feed
Consistent Distribution
Lift System
Transport-Ready Design
Operational Speed
Performance for Large Acreage
Efficient Operation, Outstanding Performance
The T100 helps farms apply crop protection products with high-capacity liquid handling and dual atomizing centrifugal sprinklers.
Engineered for wide, efficient coverage across large-acreage field and orchard operations.
Optional water-cooled mist sprinklers improve canopy penetration for orchard crops.

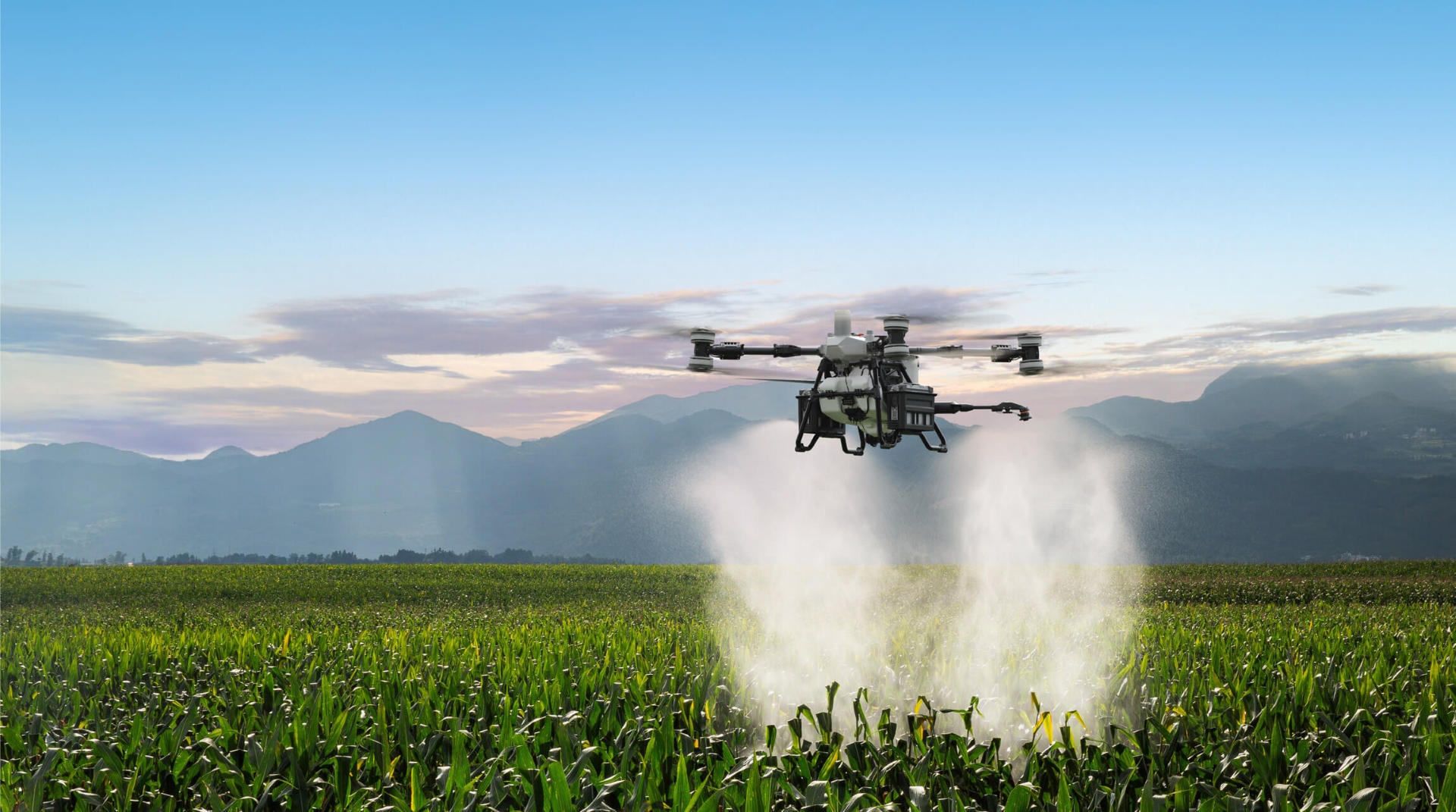

Spraying System
Dual Atomization and High Flow
The T100 uses dual atomizing centrifugal sprinklers and magnetic-drive impeller pumps to apply crop protection products with stable, high-output spraying. Standard and optional nozzle configurations adapt flow and coverage to field and orchard jobs.
Spreading System
Bigger Loads, Faster Flow
The T100 spreading system is built for high-capacity loading and high-throughput output. Its screw-feeder design and interchangeable feeder types support fertilizer, seeds, and feed across field, orchard, and aquaculture scenarios.

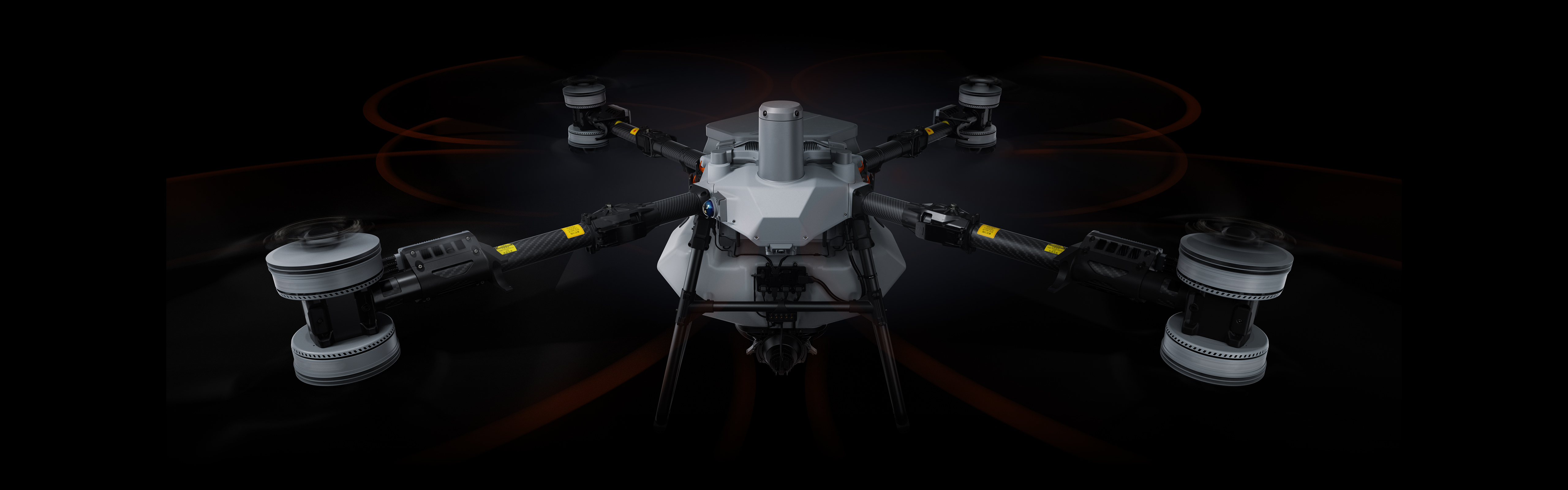

Industry-Leading Safety System
Omnidirectional Sensing and AR Assistance
The T100 combines LiDAR, millimeter-wave radar, and a Penta-Vision system for all-around obstacle awareness. Advanced sensor fusion and AR safety assistance improve reliability in complex environments and low-visibility operations.
Lift System
Your Transport Assistant
The T100 lift system helps farms move supplies, produce, and materials between loading and unloading points. It also supports dual-battery lifting configurations and includes an emergency cable fuse disconnection mode for trapped load scenarios.

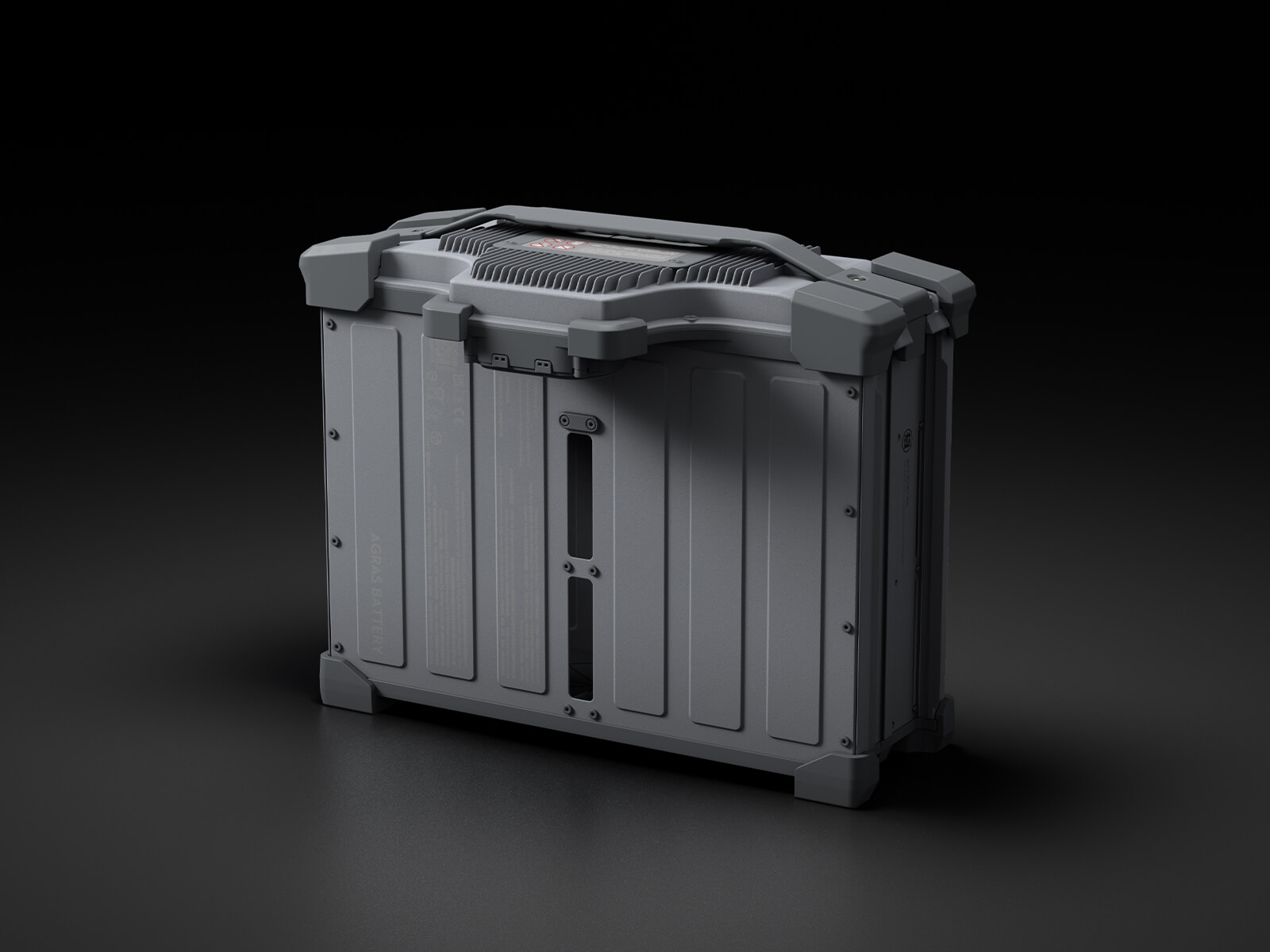

Power System
Ultra-Fast Charging, Energy-Efficient Design
The DB2160 intelligent flight battery provides 41 Ah capacity and supports 1,500 charge cycles under warranty. Compatible high-power charging systems can charge from 30% to 95% in about 8 - 9 minutes, helping crews return to field operations quickly.

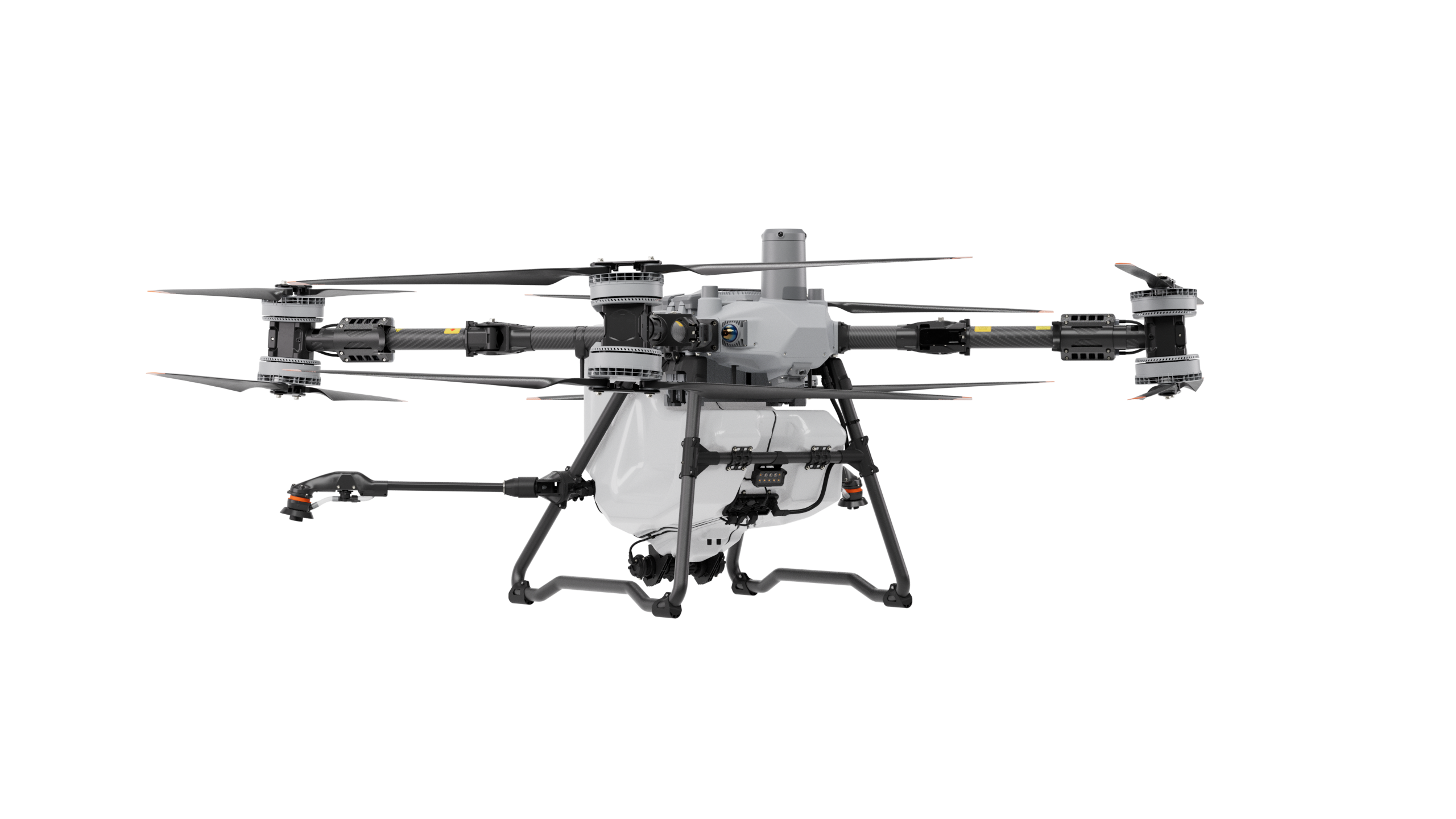

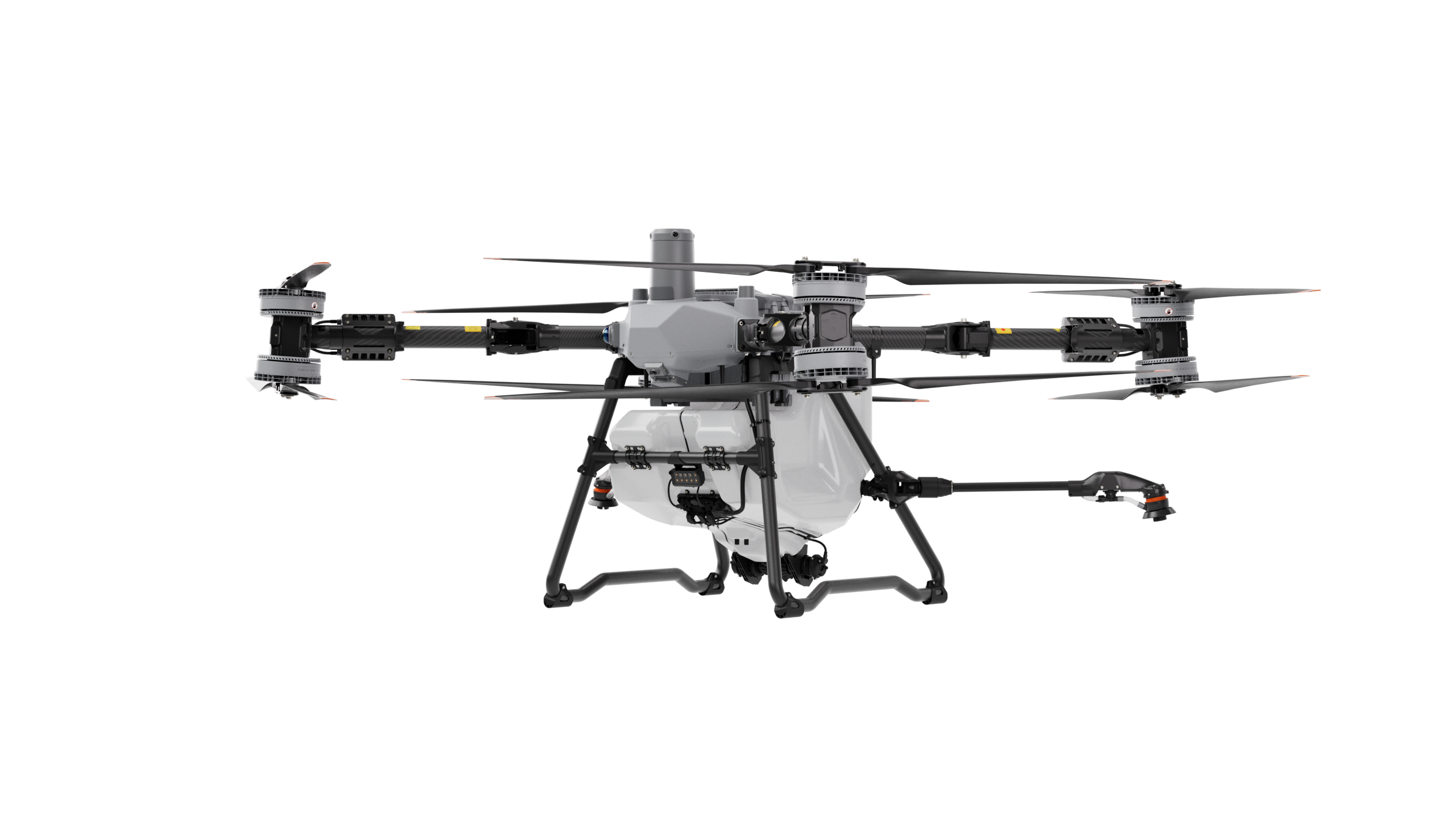

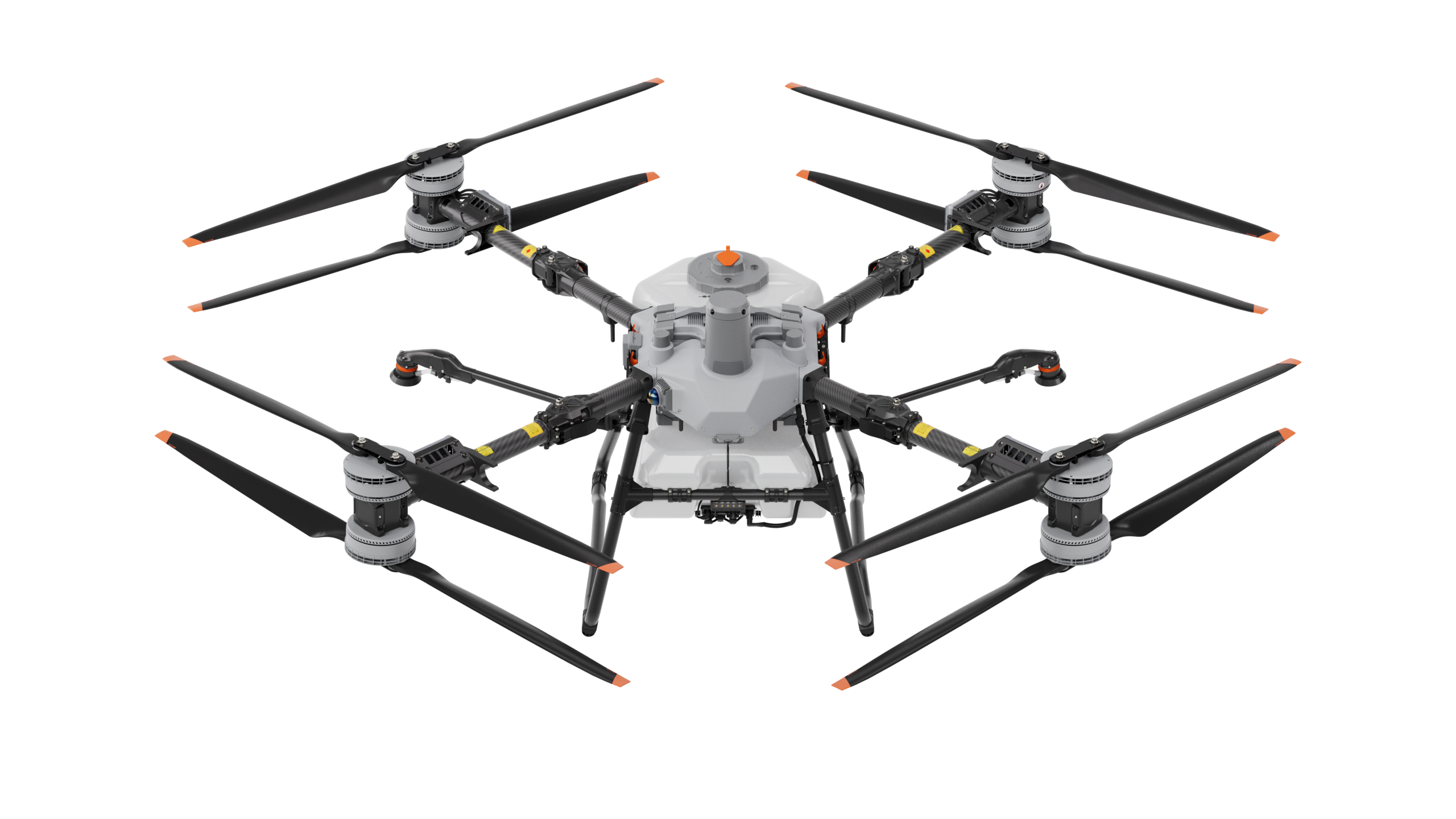

DJI AGRAS T100 Specifications
Aircraft Specs
| Weight (spraying) | 165.3 lbs (standard with 2 nozzles) 169.8 lbs (optional with 4 nozzles) |
|---|---|
| Weight (spreading) | 165.3 lbs (equipped with spreading system) |
| Weight (lifting) | 143.3 lbs (equipped with lifting system) 198.4 lbs (equipped with dual-battery lifting system) |
| Max takeoff weight (spraying) | 385.8 lbs (standard with 2 nozzles) 390.2 lbs (optional with 4 nozzles) |
| Max takeoff weight (spreading) | 385.8 lbs (equipped with spreading system) |
| Max takeoff weight (lifting) | 363.8 lbs (equipped with lifting system) 374.8 lbs (equipped with dual-battery lifting system) |
| Max diagonal wheelbase | 91.7 in (diagonal) |
| Dimensions (unfolded) | 126.8 in x 126.9 in x 38.4 in (arms and propellers unfolded) |
| Dimensions (arms unfolded, propellers folded) | 71.7 in x 72.4 in x 38.4 in |
| Dimensions (folded) | 43.5 in x 49.8 in x 38.4 in (arms and propellers folded) |
| Hovering accuracy range (strong GNSS) | RTK enabled: +/-3.9 in (horizontal), +/-3.9 in (vertical) RTK not enabled: +/-2.0 ft (horizontal), +/-1.0 ft (vertical) |
| Max configurable flight radius | 1.24 mi |
| Operating temperature | 32 F to 104 F |
| Max wind resistance | <13.4 mph |
Safety System 3.0 Specs
| Measurement range | <= 197 ft |
|---|---|
| Effective safe obstacle avoidance speed | <= 30.9 mph |
| Effective obstacle avoidance height | >= 4.9 ft |
| Safe distance | 8.2 ft (distance between drone and obstacle after braking and stable hover) |
| LiDAR FOV | Vertical 272 degrees, Horizontal 60 degrees |
| Front radar FOV | Horizontal 360 degrees, Vertical +/-45 degrees |
| Rear radar FOV | Left and right +/-45 degrees, front and back +/-45 degrees |
| Quad-vision system FOV | Horizontal 360 degrees, Vertical 180 degrees |
| FPV camera FOV | Horizontal +/-86 degrees, Vertical 108 degrees |
Safety System Environment
| Operating temperature | 32 F to 104 F |
|---|---|
| Operating environment requirements | Adequate light and discernible surroundings |
Spraying System - Tank
| Spray tank material | HDPE |
|---|---|
| Spray tank volume | 26.4 gal |
| Operating payload | 220.5 lbs |
Spraying System - Sprinklers
| Model | LX07550SX (standard nozzle) LX09550SX (optional mist nozzle) |
|---|---|
| Quantity | 2 (standard) / 4 (optional) |
| Nozzle distance | 72.2 in (two nozzles / four nozzles outermost) |
| Droplet size | 0.002 - 0.020 in |
| Maximum effective spray width | 16.4 - 42.7 ft |
Spraying System - Delivery Pumps
| Type | Impeller pump (magnetic drive) |
|---|---|
| Quantity | 2 |
| Max flow rate | 7.9 gal/min (standard 2 nozzles) 10.6 gal/min (optional 4 nozzles) |
Spreading Load Compatibility
| Spreading load dimensions | 35.4 in x 32.3 in x 36.2 in |
|---|---|
| Extra-large auger compatibility | 0.02 in - 0.39 in granules (fertilizer, wheat, feed, etc.) |
| Medium auger compatibility | 0.16 in - 0.24 in granules (rice) |
| Optional large auger compatibility | 0.16 in - 0.39 in granules (rice, fertilizer) |
| Optional small auger compatibility | 0.02 in - 0.16 in granules (rapeseed, granular herbicides, granular insecticides) |
Power and Battery Specs
| Model | DB2160 Intelligent Flight Battery |
|---|---|
| Weight | 32.4 +/- 0.7 lbs |
| Capacity | 41000 mAh (41 Ah) |
| Nominal voltage | 52 V |
| Warranty cycle life | 1500 charge cycles |
| D14000iE recharge time | 8 - 9 minutes (30% to 95%) |
| D14000iE charging output | 42 - 61.6 V / 11500 W |
| C12000 smart charger output voltage | 62 V |
| C12000 rated power | 12000 W (three-phase 380 V input) |
| C12000 recharge time | 8 - 9 minutes (30% to 95%) |
